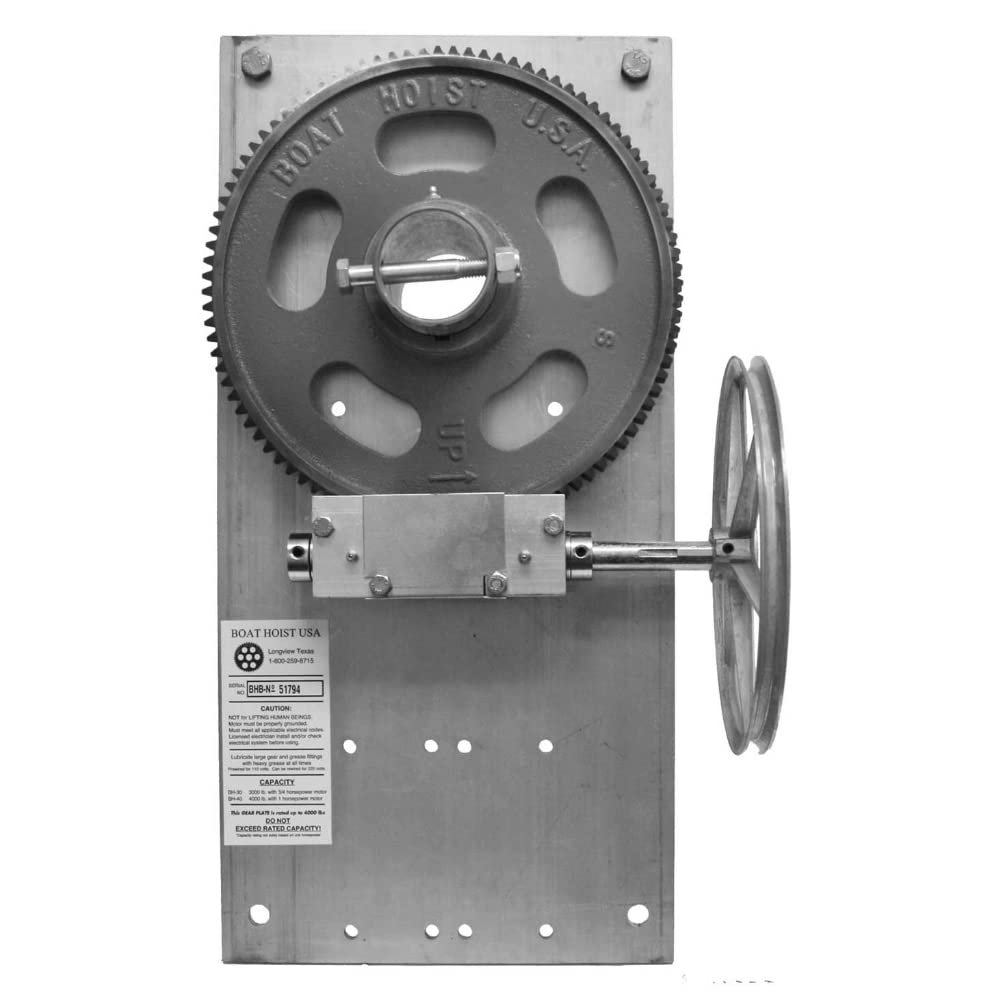

4,000 lb. Standard Gear Plate Assembly - 1/2" Marine Grade Aluminum

Description

• No Steel on Steel Moving Parts
• 4000 lb. Straight Line Capacity
• Industry Standard Mounting Holes
• Tested Under Load Before Ship
• Made in the USA
• Gear Ratio: 96: 1 / Dimensions: 2 ft. x 1 ft.
• Back Plate Bearing: Bronze Composite
• 96-tooth Gear Material: Cast Iron
• Worm Material: Hardened Bronze
• Pulley: 10" / Belt: AX-34 34" Hoist Belt

The 4, 000 lb. Standard Gear Plate Assembly features a solid aluminum worm housing, extended support blocks, grease fittings, and composite bronze backplate bearing. The single worm gear has a hardened steel worm and solid bronze 96 tooth worm gear. 10 metal pulley and AX-34 drive belt included. 56 frame motor mounting holes. 96: 1 Gear ratio. 2 x 1 gear plate size, which is standard for flat plate hoist dimensions. No steel on steel moving parts and rated up to 4, 000 pounds. Tested under load before shipped. Made in the USA. Manufactured by BH-USA. Gear Ratio: 96: 1 / Dimensions: 2 ft. x 1 ft. Back Plate Bearing: Bronze Composite 96-tooth Gear Material: Cast Iron Worm Material: Hardened Bronze Pulley: 10" / Belt: AX-34 34" Hoist Belt
